XT25-4

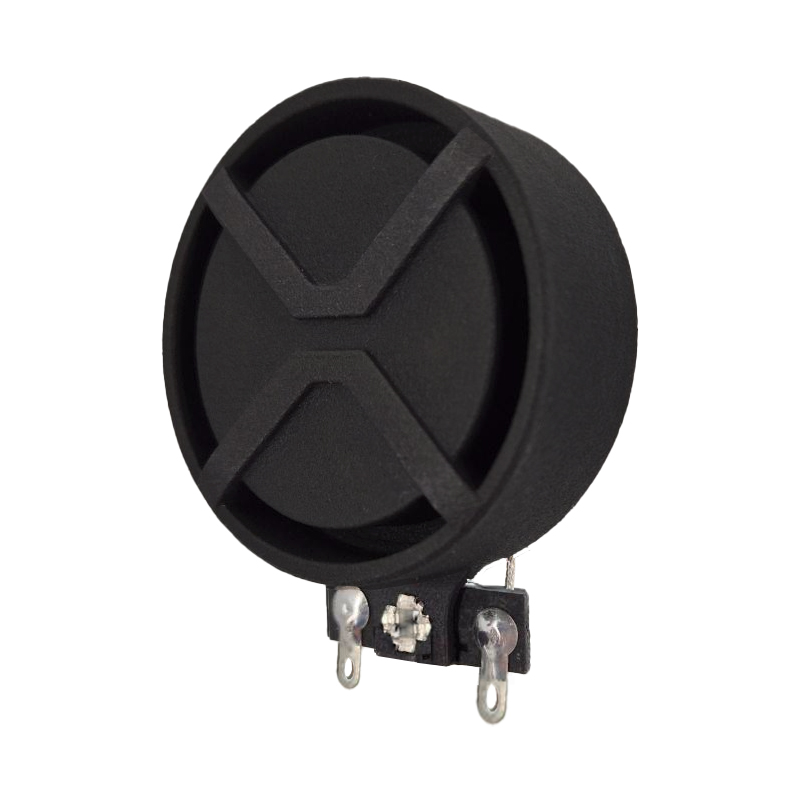

Xtreme High Frequencies - Xperience Audio Without Upper Frequency Limits! The XT25 is crafted for exceptional high-frequency performance, ideal for systems needing extended treble clarity. Designed for frequencies up to 19kHz, it delivers crisp, precise audio suited for studio and home use. With a 3.0mm Xmax and 1.4mm linear range, the XT25 ensures a perfect balance of power and clarity. Its N42-grade neodymium double magnet enhances sensitivity, while symmetrical Bl(x) and Kms(x) curves reduce distortions. Perfectly paired with bass drivers like the XTB40, the XT25 offers an immersive, full-range audio experience with superior high-frequency response.
  • Xtreme Upper-Frequency Limit
  • Xtreme Displacement
  • Xtreme Sensitivity
  • Xtreme Low Distortion
  • Xtreme Reliable Performance
Long-term Max Power 30 W
Frequency Range 40 Hz – 19 kHz
Linear Xmax - IEC 60268 ± 1.4 mm
Re 3.79 Ohm
Motor Efficiency Factor β 5.65 dB
Overview
Specifications
Verified with KLIPPEL
Review
Datasheet
Where to buy

The XT25 is engineered for exceptional high-frequency performance, making it a perfect fit for systems requiring extended treble range. Featuring an optimized design for frequencies up to 19kHz, this driver delivers crisp, precise audio, ideal for studio and home applications. With its Xmax of 3.0mm and linear displacement of 1.4mm, the XT25 achieves a delicate balance of power and clarity across the full frequency range.

Powered by an N42-grade neodymium double magnet, the XT25 guarantees superior sensitivity and efficiency. Its symmetrical Bl(x) and Kms(x) curves minimize harmonic and intermodulation distortions, ensuring a clear and detailed listening experience. The XT25 sets a new standard for high-frequency drivers.

Designed to complement full-range systems, the XT25 pairs effortlessly with bass-focused drivers like the XTB40 to create an immersive audio experience.

Compared to the XT32, the XT25 is optimized for the highest frequencies and has less low-frequency output.

  • Extended Upper Frequency Limit: Optimized for frequencies up to 19kHz.
  • Large Displacement: 3.0mm Xmax and 1.4mm linear displacement.
  • High Sensitivity: Double N42 Neodymium Magnet for extreme sensitivity and precision.
  • Low Distortion: Symmetrical Bl(x) and Kms(x) curves for lowest distortions.
  • Reliable Performance: Low-loss yellow conex spider with an optimized shape.
