XT32-8

The X-in-One Solution - Xtreme Audio Performance at an Unbeatable Price! The XT32-8 stands out with its unique combination of large Xmax and low inductivity, ensuring panel vibrations with lowest distortions over the whole frequency range. At its core, the XT32-8 features a double magnet rare-earth neodymium motor, delivering xtreme power and precision. The XT32-8 is xtreme reliable - designed to avoid bottoming out combined with a heat-resistant and low loss yellow conex spider.
  • Xtreme Wide Frequency Response
  • Xtreme Displacement
  • Xtreme High Sensitivity
  • Xtreme Low Distortion
  • Xtreme Reliable Performance
Long-term Max Power 40 W
Frequency Range 35 Hz – 17 kHz
Linear Xmax - IEC 60268 ± 1.6 mm
Re 7.22 Ohm
Motor Efficiency Factor β 6.28 dB
Overview
Specifications
Verified with KLIPPEL
Review
Datasheet
Where to buy

Xtreme Series – Xtreme audio performance at an unbeatable price!
We believe that xceptional audio quality should be accessible to everyone. That’s why we packed the Xtreme Series with cutting-edge features at an unbeatable price.

Xtreme wide frequency response
Don’t limit yourself – discover the whole frequency range from a single Xciter. The XT32-8 covers 35Hz to 17kHz. Most exciters are limited by their larger inductivity or a significant voice coil break-up. Not the XT32-8. Its impressively low inductance of just 0.13 mH and optimized voice coil design guarantee a real high-frequency performance.

Xtreme precise and powerful
Xperience the power and precision of the XT32-8! Engineered with a symmetrical force factor and a high-flux design. The double magnet neodymium motor design ensures dynamic, distortion-free audio on any surface. The combination of a 4Ohm voice coil and powerful neodymium magnet increases sensitivity while economizing power, perfect for smaller and medium-sized amplifiers.

Xtreme low distortion

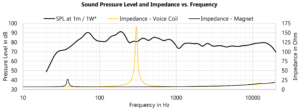

Designed for minimal distortion, the XT32-8 guarantees an authentic audio experience. By reducing Force Factor, Stiffness, and Inductivity variations, it limits harmonic and intermodulation distortions. Enjoy your favorite music, movies, and games with unparalleled precision and clarity. Need proof? Check out the reference plots in the transducer datasheet.

Xtreme reliable
The XT32-8 will be your trusted audio companion for years to come. Featuring a high-quality, low-degradation conex spider and a design preventing displacements over 3.5mm, the XT32-8 is built to perform consistently under any condition. It comes with pre-applied 3M VHB adhesive for easy installation and includes two male spade quick-disconnect terminals for fast and secure electrical connection. No matter how intense your usage, the XT32-8 is designed to deliver consistent, reliable performance every single time.
